E-Series Evaporative Cooling

Product Details

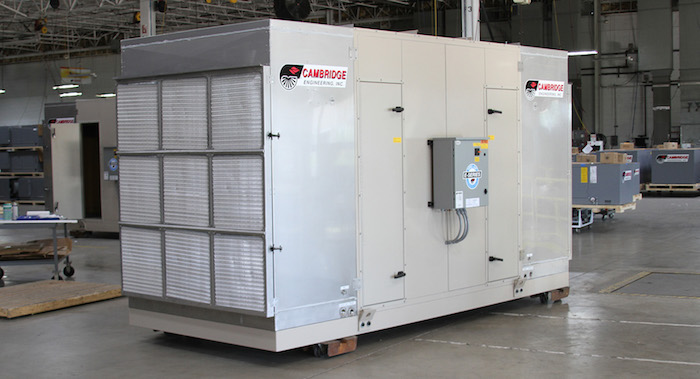

The E-Series direct evaporative cooling (DEC) unit is for commercial and industrial applications where it is engineered to provide cool, fresh, conditioned air for your facility and create a more comfortable and productive work environment while using up to 70% less energy than conventional mechanical cooling systems.

Performance Features
--Engineered to be self-supporting, impregnated and treated to provide high absorbency
--12” depth will provide saturation efficiency of 90% when operated around 400 feet per minute (fpm) face velocity
--2” extruded aluminum to provide maximum strength and minimal deflection
--Panels are G90 galvanized steel and base is formed G90 12 gauge galvanized up to size 120 and structural 6”, welded ‘C’ channel, on the size 160
--Evaporative section is constructed from single wall 304 stainless steel
--Sump is constructed from 16 gauge 304 stainless steel and fully welded
--Premium cooler pump provides water flow through clog less nozzles
--NEMA 3R control panel with a through the door non-fused disconnect switch
--Air is moved by a double width, double inlet forward curve fan which is statically and dynamically balanced
