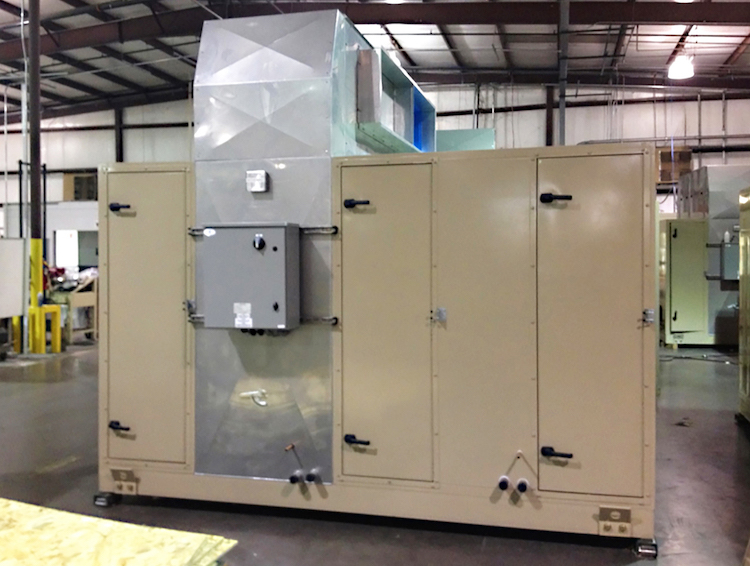

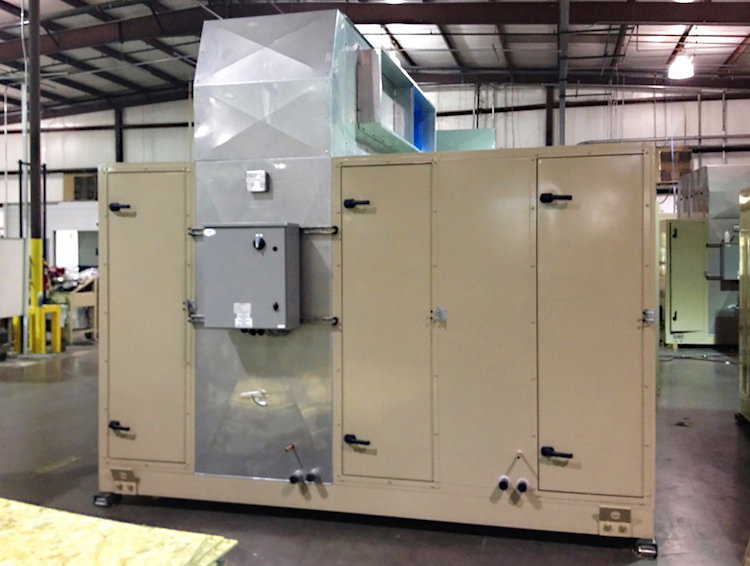

ESC-Series Evaporative Cooling

Product Details

The ESC-Series evaporative cooling unit is a semi-custom fabricated air handler that can utilize indirect (IEC) or direct (DEC) evaporative cooling or a combination of both indirect/direct (IDEC) evaporative cooling to meet specific usage and dimensional requirements. The ESC-Series unit come with various options including service access location, utility connections, airflow arrangements and accessories. The evaporative air handler uses 100% outside air to provide tempered makeup air and whole building cooling. The ESC-Series unit is designed for large industrial or commercial buildings looking to provide better indoor air quality without the equipment or operating costs associated with mechanical cooling.

Performance Features
Indirect:
--Designed for large industrial or commercial buildings looking to temper the air in the building without the equipment or operating costs of mechanical cooling
--Uses 30 – 40% of the energy of mechanical cooling and maintain temperatures below 85°F on a design summer day when sized properly

Indirect/Direct
--Will provide supply air at 66/63°F at summer design of 105/71°F or 71 tons with 39.6 EER with no mechanical cooling
--Options include 304 stainless steel casing, intake louver and screen, 2” permanent intake filters, shut off damper and factory mounted controls
